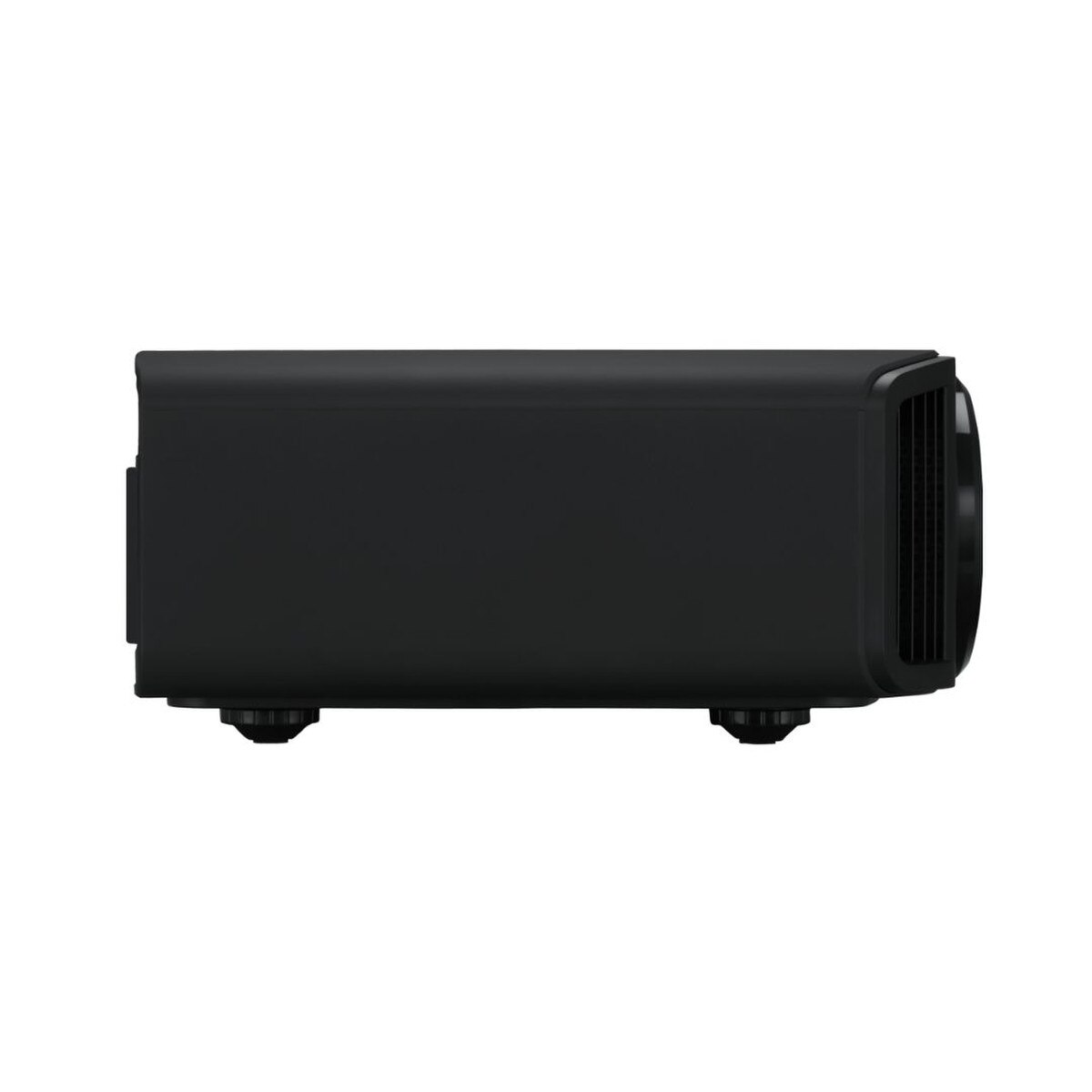

DLA-NZ800
JVC's new flagship NZ800.
D-ILA device is the heart of projectors that plays an important role in projecting beautiful images. Device improvement continues to date – the thirdgeneration 0.69-inch native 4K D-ILA device improved the alignment control of liquid crystals and enhanced the flatness of image pixels to offer 1.5-times the native contrast ratio compared to the Gen2 device. Additionally, improvements in the device manufacturing process have resulted in improved screen uniformity and enhanced image quality.
Another essential aspect of projectors lies in their light source. The DLA-NZ series adopts JVC’s newest laser light source “BLU-Escent Laser” to achieve exceptional peak brightness of 3,300 lumens on the DLA-NZ900 and 2,700 lumens on the DLA-NZ800, both with longevity of 20,000 hours. When compared to the first-generation laser projector*, the projectors’ brightness per effective wattage has improved 1.9-fold, which, as a result, also contributes to saving power through improved power efficiency.
Light source: BLU-Escent laser
Lumens: 2700
Light Source: Blue Laser
Contrast Ratio: 100,000:1
Chipset: LCoS
Aspect Ratio: 16:9 [HD]
Throw Ratio: 1.43 – 2.92:1 (D:W)
Native Resolution: 8192×4320
Lens Shift: Horizontal & Vertical
3D Support: Active Full HD 3D
Warranty: 3 Years\Motorized Lens w/Memory
Input connectors: HDMI x 2 (48 Gbps/HDCP 2.3)

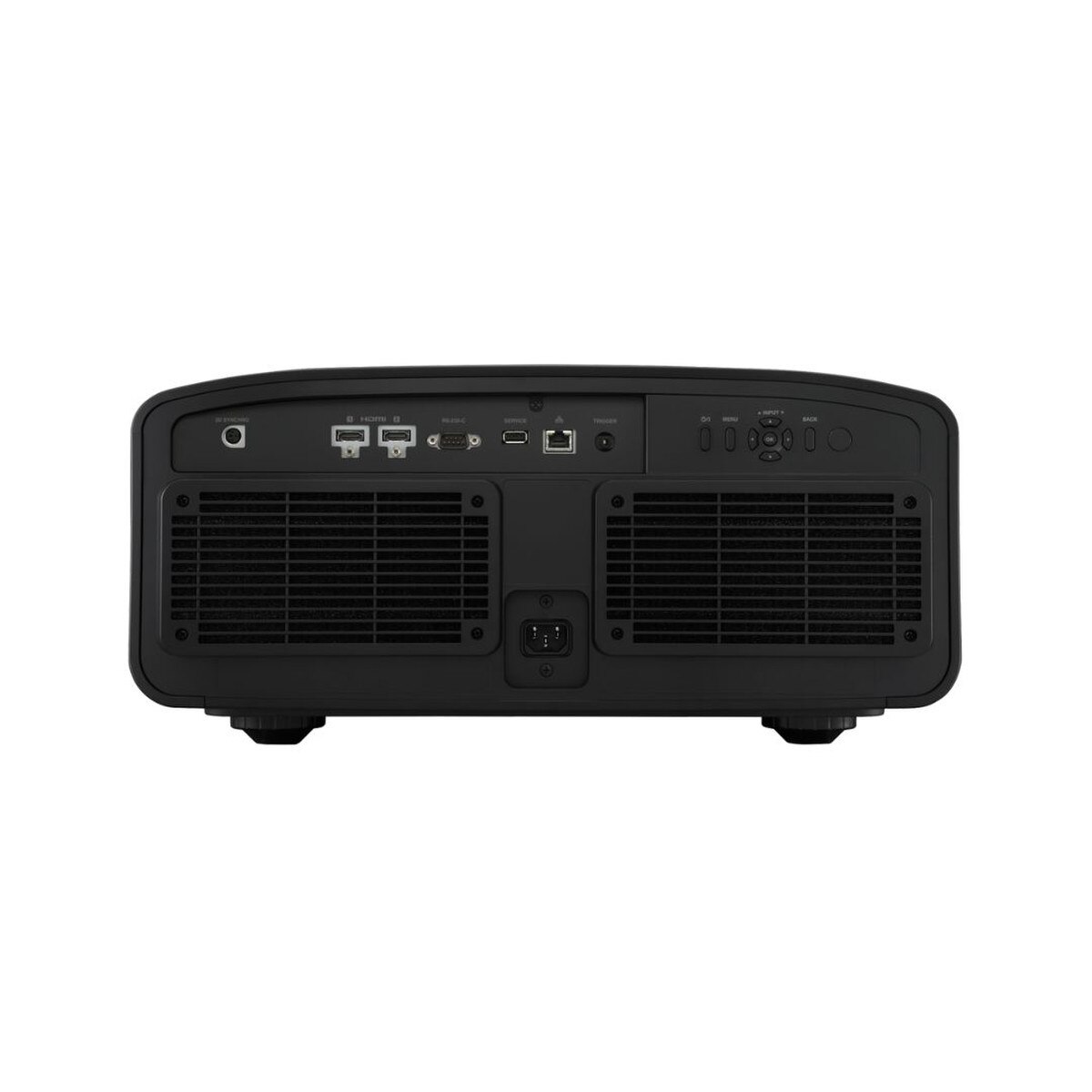

Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
18-element, 16-group all-glass 65mm diameter high-quality lens
Ultra-High Contrast Optics w/BLU-Escent laser light source contributes for optical brightness of 3,000 lumens & longevity of 20,000 hrs
Multiple Pixel Control image processor accurately reproduces images closer to the original
Infinity:1 Dynamic Contrast Ratio; 100,000:1 Native Contrast Ratio
Cinema Filter (DCI-P3) creates saturated, beautiful images that come to life
Compatible with the two dynamic tone mappings of HDR10+ content & Frame Adapt HDR w/Theatre Optimizer*, the projector expresses HDR/HDR10+ content at optimum brightness & darkness in each scene as the creator intended
The projector automatically reproduces HDR10+ content based on the metadata for each scene
Frame Adapt HDR w/Theatre Optimizer performs tone mapping according to the input signal of the content as well as the installation environment
Installation mode w/10 memories centrally manage 9 settings to enjoy video best suited for each environment
Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on/off, Screen Setting, Installation Style, Keystone & Aspect; stored installation modes for various environments can be called up
Compensation accuracy of Clear Motion Drive improved in the periphery of objects. Added with Motion Enhance technology, the projector can reproduce much smoother moving 4K images (function disabled when inputting 4K120p signals)
Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
Color Management System with 6-axis Matrix
Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including color balance, gamma characteristics, color space and color tracking
ISF Certified Calibration Mode*** renders excellent picture quality optimized for your specific environments.
